Single vibration source straight sieve - Xinxiang Gaofu Machinery Co., Ltd
×

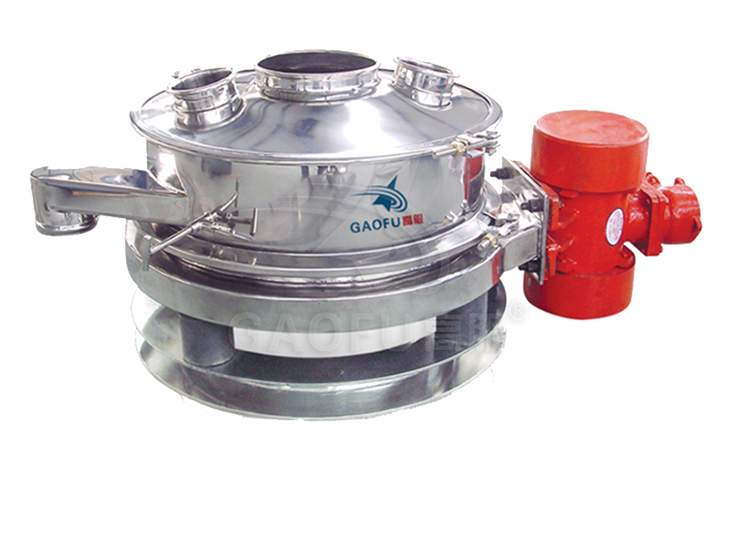

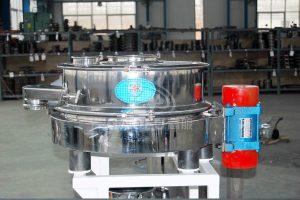

Single Vibration Source Straight Sieve

Application:
Food industry, Pharmaceutical industry, Chemical industry
Material:
Flour, soy protein, milk powder, sugar, amino acids, food additives, condiments, yeast etc all powder materials screening.
Chinese medicine granules, Chinese medicine powder, pharmaceutical intermediates, Chinese Herbal Medicine, plant extracts, biological agents, etc.
Metals, metallurgy powder,etc.

Why is Gaofu single vibration source straight sieve?

The straight sieve uses a high-frequency vibration motor as the excitation source. After the material enters the system, it undergoes a three-dimensional rotational movement on the screen surface due to the force of the vibration source. The flour and agglomerates are fully dispersed, and quickly pass through the screen and directly enter the lower noodle bin. Impurities and foreign matter are separated and discharged to the slag discharge port, playing the role of “quality assurance officer” on the production line.

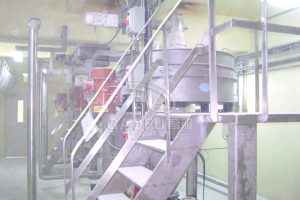

The straight sieve can be used in the feeding system at the front end of production lines such as instant noodles, dried noodles, snacks, solid beverages, etc. to separate foreign matter in raw materials (flour, starch, milk powder, additives, etc.). Because it is connected in series in the system and automatically separates foreign matter, it is known as the “quality assurance officer” of the food production line. The flour sifter can replace the manual observation of finding foreign matter and sorting it.

Gaofu single vibration source straight sieve works very well for these materials!

Flour, soy protein, milk powder, sugar, amino acids, food additives, condiments, yeast etc all powder materials screening.
Chinese medicine granules, Chinese medicine powder, pharmaceutical intermediates, Chinese Herbal Medicine, plant extracts, biological agents, etc.
Metals, metallurgy powder,etc.

Technical Parameters

Model Power(KW) Speed(r/min) Dia.(mm) Dimensions(mm)
DZ-600 0.18 1450 Φ580 1000×600×550
DZ-800 0.25 1450 Φ780 1100×800×600
DZ-1000 0.55 1450 Φ960 1280×1000×700
DZ-1200 0.75 1450 Φ1160 1550×1200×750
DZ-1500 1.5 1450 Φ1460 1850×1500×900



Who are using Gaofu single vibration source straight sieve?
  • Chemical
  • Food
  • Biological
  • Metal powder
  • Fortune 500 companies
  • New energy
  • Pharmaceutical

Gaofu strength gallery
  • Certificate
  • Company scene

These products may be more suitable for you

    Rotary Vibrating Screen

    It adopts advanced sealing technology to prevent leakage and extend service life. The sealing gap can be automatically compensated with the use process.

    Learn More

    Straight Sieve

    Impurities and foreign matter are separated and discharged to the slag discharge port. The safety officer of the production line

    Learn More

    Bag Dump Station

    This equipment is suitable for unpacking, placing, screening and unloading small bags of materials in the food, pharmaceutical, chemical and metallurgical industries.

    Learn More
